Controls & Equipment
Where everything is and what it does: the cockpit layout, instruments and warning lights, keys and ignition switch, the handlebar switches, side stand, and fuel filler.
Chapters· Controls & Equipment
Source: Owner’s Manual — Location of Parts & General Informationsrc: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)

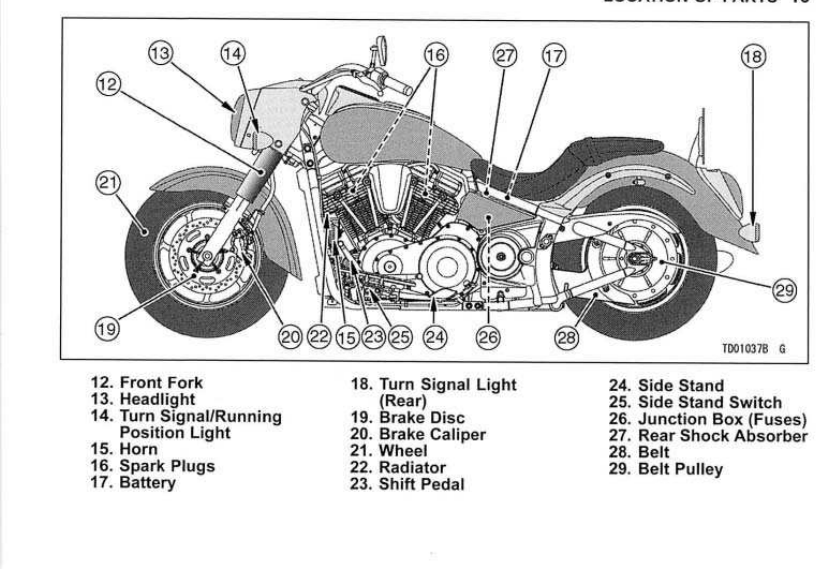

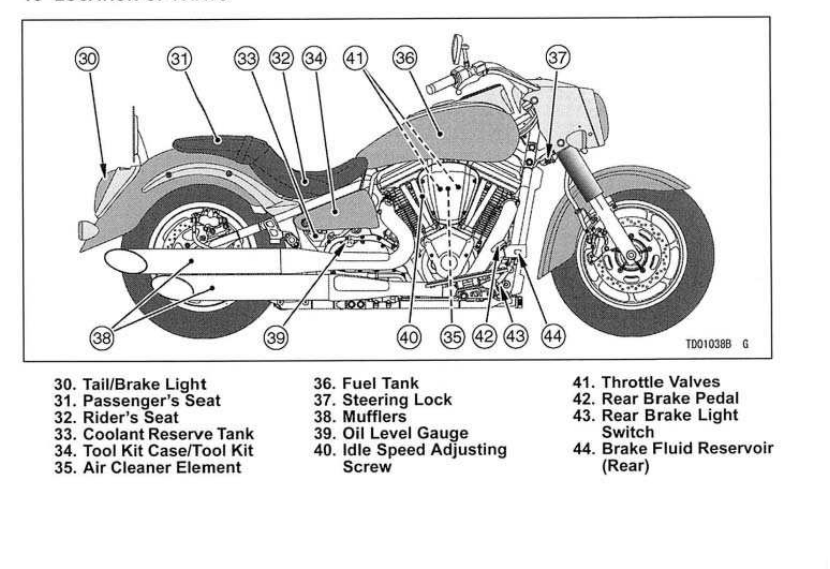

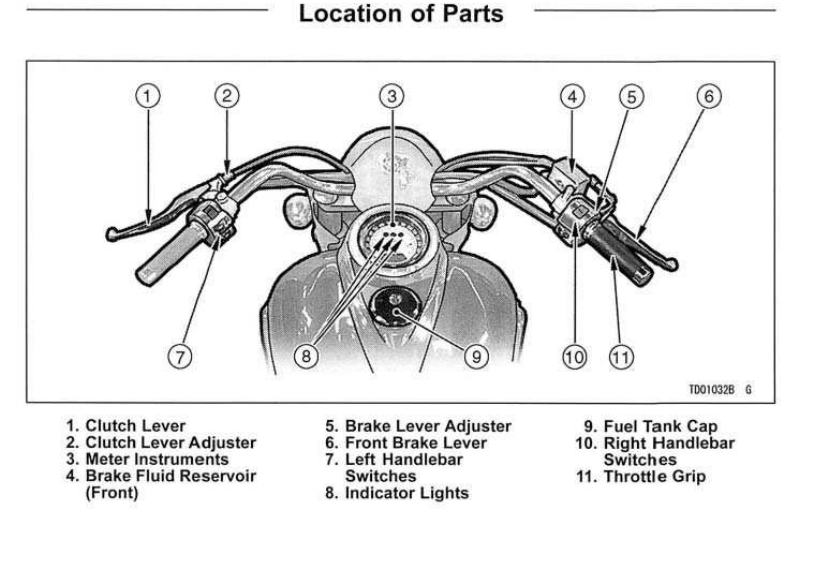

The factory “Location of Parts” diagrams — cockpit controls and both sides of the machine.
The LCD instrument cluster: odometer, twin trip meters, fuel gauge and clock.
The odometer shows total distance ridden and cannot be reset. Two trip meters and a clock are reached with the MODE button; the RESET button zeros the displayed trip meter (push MODE to the trip meter, hold RESET, and after about two seconds it returns to 0.0 and starts counting).src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
The fuel gauge shows the tank level as a bar of segments — all segments at full, disappearing one by one from F to E as the level drops. The display data is held by back-up power when the ignition is OFF; if the battery is disconnected, the trip meters reset to 0.0.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
A trip meter rolls over from 9999.9 back to 0.0 and keeps counting. Refuelling while the bike is held upright can leave the gauge one segment short of full.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
What each tell-tale means — and which ones you must never ride with lit.
Indicator & warning lights
| Symbol | Meaning |
|---|---|
| N (green) | Neutral — lit when the transmission is in neutral. |
| High beam (blue) | Lit when the headlight is on high beam. |
| Turn signal | Flashes when the turn-signal switch is pushed left or right. |
| Oil pressure (red) | On when oil pressure is dangerously low, or with the ignition ON and engine not running; goes off once pressure is high enough. |
| Coolant temp (red / =E) | On at ignition ON (self-check) or if coolant reaches ~120 °C or higher in use. |
| FI (fuel injection) | Self-checks at ignition ON; if it stays on, have the DFI system checked. |
| Fuel level | Self-checks at ignition ON; comes on again with about 4.0 L of usable fuel left — refuel at the next opportunity. |
If the oil-pressure light comes on while riding, stop and switch off at once — running with low oil pressure will destroy the engine. A coolant-temperature warning means pull over and let it cool before checking coolant.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
One combination key for everything; a three-position ignition switch (OFF · ON · P).
A single combination key works the ignition, steering lock, right side-cover lock, helmet hook and fuel-tank cap. Record the key code from the tag — a Kawasaki dealer can cut a replacement from it if the keys are lost.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)

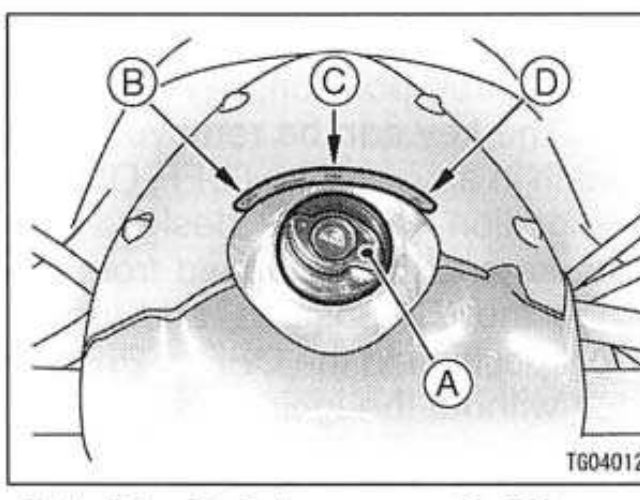

Ignition switch positions
| Position | Effect |
|---|---|
| ON | Engine can run; all electrical equipment usable. |
| OFF | Engine off; all electrical circuits off. |
| P (Park) | Engine off; tail & licence-plate light on for visibility; all other circuits off. |
The key can be removed in any position. Tail, running and licence-plate lights are on whenever the switch is ON; the headlight comes on when the starter button is released after starting.
Leaving the bike in P, or in ON without the engine running, for about an hour can fully discharge the battery. Don’t leave the switch at P too long. Always turn the key to OFF or P when parking.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
The right-bar safety switches that must be set correctly before the bike will run.
Besides the ignition switch, the engine-stop switch (right handlebar) must be in the run position for the motorcycle to operate. It is for emergency use — move it to the stop position to kill the engine quickly. It stops the engine but does not turn off all electrical circuits, so normally use the ignition switch to switch off.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
The starter button (right handlebar) operates the electric starter. The starter circuit is interlocked: the engine will not start in gear with the side stand down — but it will start in gear if the clutch lever is pulled in and the side stand is fully up.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
Do not run the starter continuously for more than 5 seconds or it will overheat and battery voltage will drop. Wait 15 seconds between attempts to let it cool and the battery recover.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
A switch-interlocked side stand — the engine stops if you shift into gear with it down.

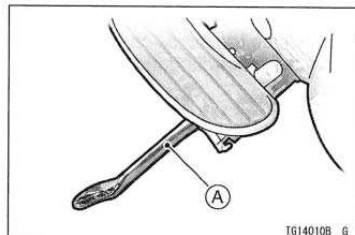

The side stand carries a switch wired into the starting/run interlock: the engine will not start (and will stop) if the transmission is put in gear while the stand is down. Always retract the stand fully before riding off.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
The bike also has a vehicle-down (lean-angle) sensor that stops the engine automatically if the machine falls over. After righting it, turn the ignition OFF, then back ON before restarting.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
A key-locked hook on the left of the frame to secure a helmet while parked — never ride with a helmet on it.

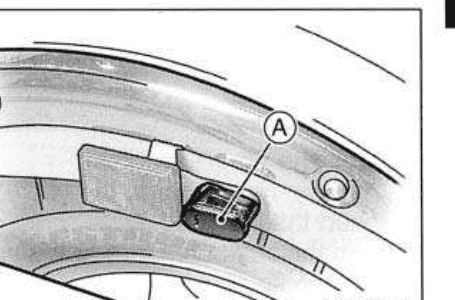

A helmet can be secured to the motorcycle on the helmet hook, located on the left side of the frame. Unlock it by inserting the ignition key into the lock and turning the key to the right.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
Do not ride with a helmet attached to the hook — it can distract the rider or interfere with normal operation of the motorcycle and cause an accident.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
The key-locked right side cover gives access to the tool kit and the fuse/junction box.

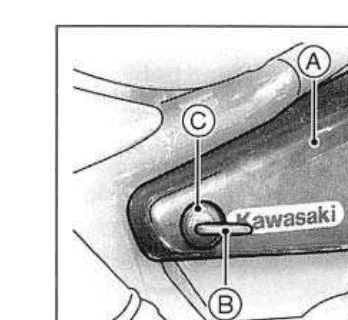

The left and right side covers are removed to take out the tool kit and inspect the fuses. The right side cover is locked: insert the ignition key and turn the lock fully clockwise, pull the rear of the cover out to free the rear pin and grommet, slide it forward, then pull the front off the two front pins. Refit it in reverse and turn the key fully counter-clockwise to lock it. The left cover is held by a single screw. The tool kit case sits behind the right side cover.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
Unleaded only, minimum 90 (R+M)/2 octane; up to 10% ethanol is approved.
Fuel requirement
| Fuel type | Clean, fresh unleaded petrol |
|---|---|
| Minimum octane — Antiknock Index (RON+MON)/2 | 90 |
| Minimum octane — RON method | 95 |
| Tank capacity | 21 L |
| Low-fuel light comes on | ≈ 4.0 L remaining |

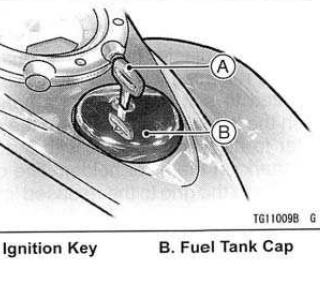

Use a minimum of 90 octane (AKI) to prevent severe engine damage; if knocking or pinging occurs, switch to a higher-octane brand. The bike has a catalytic converter — never use leaded petrol, which ruins it. Gasohol up to 10% ethanol is approved.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
Petrol is extremely flammable and can be explosive. Refuel in a well-ventilated area away from flames or sparks (including pilot lights). Never fill so the level rises into the filler neck — heat can make the fuel expand and overflow the cap vents. Wipe up any spill at once.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
