Owner’s Manual · Section

Operating Instructions

Daily safety checks, the break-in schedule, and how to start, move off, shift, brake, stop and park the motorcycle.

Chapters· Operating Instructions

Source: Owner’s Manual — Daily Safety Checks · Break-In · How to Ridesrc: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)

Daily safety checks

A quick pre-ride walk-round before every ride.

Run these checks before each ride; they take a minute and catch most roadside problems before they start.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)

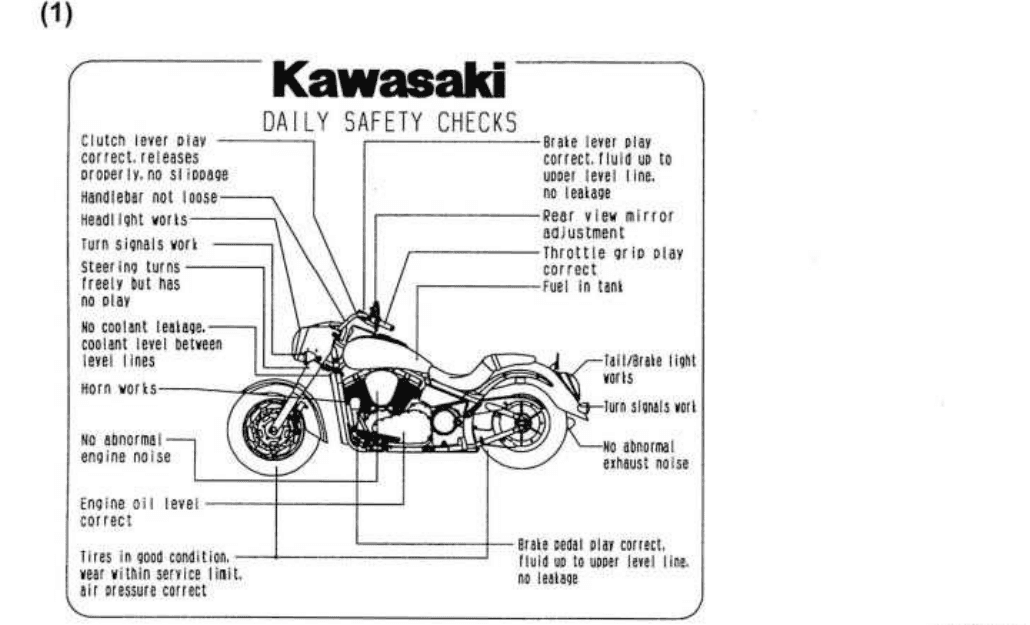

The factory “Daily Safety Checks” caution-label illustration: a side-view line drawing of the Vulcan 2000 with each pre-ride check point called out around it. — The factory “Daily Safety Checks” label (also fixed behind the left side cover). Working round the bike: clutch-lever play correct, releases properly, no slippage; handlebar not loose; headlight, turn signals and tail/brake light work; steering turns freely with no play; no coolant leakage, coolant level between the level lines; horn works; no abnormal engine or exhaust noise; engine-oil level correct; tyres in good condition, wear within limit, pressures correct; brake lever and pedal play correct with fluid up to the upper level line and no leakage; rear-view mirror adjusted; throttle-grip play correct (2–3 mm); fuel in the tank.
Vulcan 2000 Owner’s Manual, “Location of Labels — Daily Safety Checks” (p. 151).

Pre-ride checklist

Pre-ride checklist
Check	Looking for
Fuel	Enough for the ride; no leaks.
Engine oil level	Between the level lines.
Coolant	Level between the lines; no leakage.
Tires	Good condition, tread within limit, correct cold pressure.
Drive belt	Correct deflection; no damage.
Brakes (both)	Lever/pedal firm; brakes release; pads not worn out; no fluid leak.
Throttle	Smooth operation, correct free play, returns by itself.
Clutch	Correct lever play; engages/releases properly.
Steering	Turns freely with no play or binding.
Lights, horn, indicators	All work.
Engine / exhaust	No abnormal noise; no exhaust leak.
Mirrors	Clean and adjusted.

Tire pressures (cold): front 250 kPa (2.5 bar), rear 290 kPa (2.9 bar) up to 185 kg load.

Sourcesrc src

Break-in

The first 1,600 km determine how the engine wears in. Keep revs moderate and vary the load.

The first 1,600 km is the break-in period. Riding carelessly now can leave you with a “broken-down” rather than “broken-in” motorcycle within a few thousand kilometres. Observe the maximum recommended speeds below and avoid sustained full throttle.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)

Maximum recommended speed during break-in

Speed in km/h by gear.

Maximum recommended speed during break-in
Distance	1st	2nd	3rd	4th	5th
0 – 800 km	32	50	66	82	101
800 – 1,600 km	40	64	85	106	130

Sourcesrc

Note

Don’t move off or rev the engine immediately after starting, even when warm — idle for two or three minutes first so oil reaches all parts. Don’t race the engine in neutral. Keep within traffic-law limits on public roads.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)

Warning

New tires are slippery: allow about 160 km to establish normal traction, avoiding hard braking, acceleration and cornering. Have the important initial maintenance service done at 1,000 km by a competent mechanic.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)

Starting the engine

Stop switch to run, key ON, neutral, throttle closed, then the button.

Starting procedure

1
Check the engine-stop switch is in the run position.
2
Turn the ignition key to ON.
3
Make sure the transmission is in neutral (or pull the clutch in with the side stand fully up).
4
Leaving the throttle fully closed, push the starter button.
Caution
Don’t crank for more than 5 seconds at a time; wait 15 seconds between attempts. The DFI needs no choke or throttle to start.
5
Let the engine idle for two or three minutes before riding off so the oil circulates.

Sourcesrc

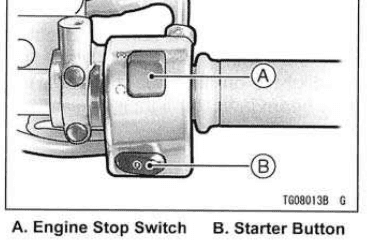

Right handlebar switch housing with callouts marking the engine-stop switch and the starter button. — Right handlebar switches used to start: A = the engine-stop switch (must be in the run position for the engine to start or run; flip it to stop the engine in an emergency), B = the starter button. With the key ON, neutral selected and the throttle closed, press B to crank.
Vulcan 2000 Owner’s Manual, “Right Handlebar Switches” (p. 33).

Note

If the bike has fallen and the down-sensor cut the engine, turn the key OFF then back to ON before starting. To avoid battery drain, start the engine promptly after turning the key to ON (the headlight only lights once running).src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)

Moving off & shifting

A 5-speed return-shift gearbox with a positive neutral finder.

Gear shift pattern beside the shift pedal: one down for 1st, neutral, then up through 2nd to 5th. — Shift pattern (5-speed return shift): A = the shift pedal. Press down for 1st, then lift up through neutral (N) and 2nd–5th — the pattern is 1 down, N, then 4 up. The positive neutral finder lets you reach only N when you lift the pedal from 1st while stopped.
Vulcan 2000 Owner’s Manual, “Shifting Gears” (p. 58).

Moving off

1
Check the side stand is fully up.
2
Pull in the clutch lever and shift into 1st gear.
3
Open the throttle a little and let the clutch out very slowly.
4
As the clutch engages, give a little more throttle to keep the engine from stalling.

Sourcesrc

Shifting gears

Close the throttle and pull the clutch in to shift; open the throttle as you release the clutch. Shift at the speeds below for smooth riding.

1
To change up: close throttle, pull clutch, lift the shift pedal to the next gear, ease the clutch out while opening the throttle.
2
To change down: do the same, pressing the pedal down — but only below the speeds shown so engine revs don’t jump.

Sourcesrc

Recommended shift speeds

Recommended shift speeds
Up-shift	km/h	Down-shift	km/h
1st → 2nd	20	5th → 4th	40
2nd → 3rd	30	4th → 3rd	30
3rd → 4th	40	3rd → 2nd	20
4th → 5th	50	2nd → 1st	15

Sourcesrc

Note

Positive neutral finder: standing still, the gearbox won’t shift past neutral up from 1st — to find neutral, shift down to 1st, then lift the pedal while stationary and it goes only to neutral.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)

Warning

Don’t down-shift at a speed that makes the engine rev excessively — it can damage the engine and make the rear wheel skid. Keep down-shifts below the speeds listed.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)

Braking, stopping & parking

Use both brakes, shift down to 1st as you stop, and park on the side stand in neutral with the steering locked.

Braking

1
Close the throttle, leaving the clutch engaged so the engine helps slow the bike.
2
Shift down one gear at a time so you reach 1st by the time you stop.
3
Apply both brakes together — normally a little more front than rear; disengage the clutch as needed to avoid stalling.
4
For emergency braking, forget down-shifting and brake as hard as possible without locking a wheel.
Caution
Never lock the brakes (the tires will skid). Reduce speed before a corner rather than braking in it; ideally don’t brake mid-corner.

Sourcesrc

Stopping the engine & parking

1
Close the throttle fully and shift into neutral.
2
Turn the ignition key to OFF.
3
Support the bike on the side stand on firm, level ground.
4
Lock the steering to help deter theft.

Sourcesrc

Caution

Don’t park on soft or steeply inclined ground or the bike may fall. If parking in a garage, make sure it is well ventilated and away from flames or pilot lights — petrol vapour is flammable.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)

Note

To stop in an emergency (e.g. a stuck throttle), apply the brakes and pull in the clutch, then use the engine-stop switch; turn the ignition off once stopped. To protect the emission system, never switch the ignition off while moving.src: Kawasaki Vulcan 2000 Owner’s Manual (rider’s handbook, 161 pp.)
