Engine Lubrication System
The semi-dry-sump oil system: feed and scavenge pumps, oil screens, relief valve and pressure switch, with oil grades and capacities, the oil-pressure spec, and oil-level / oil-pressure / relief-valve procedures.
Chapters· Engine Lubrication System
Source: Service Manual — pp. 7-1 … 7-16src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)

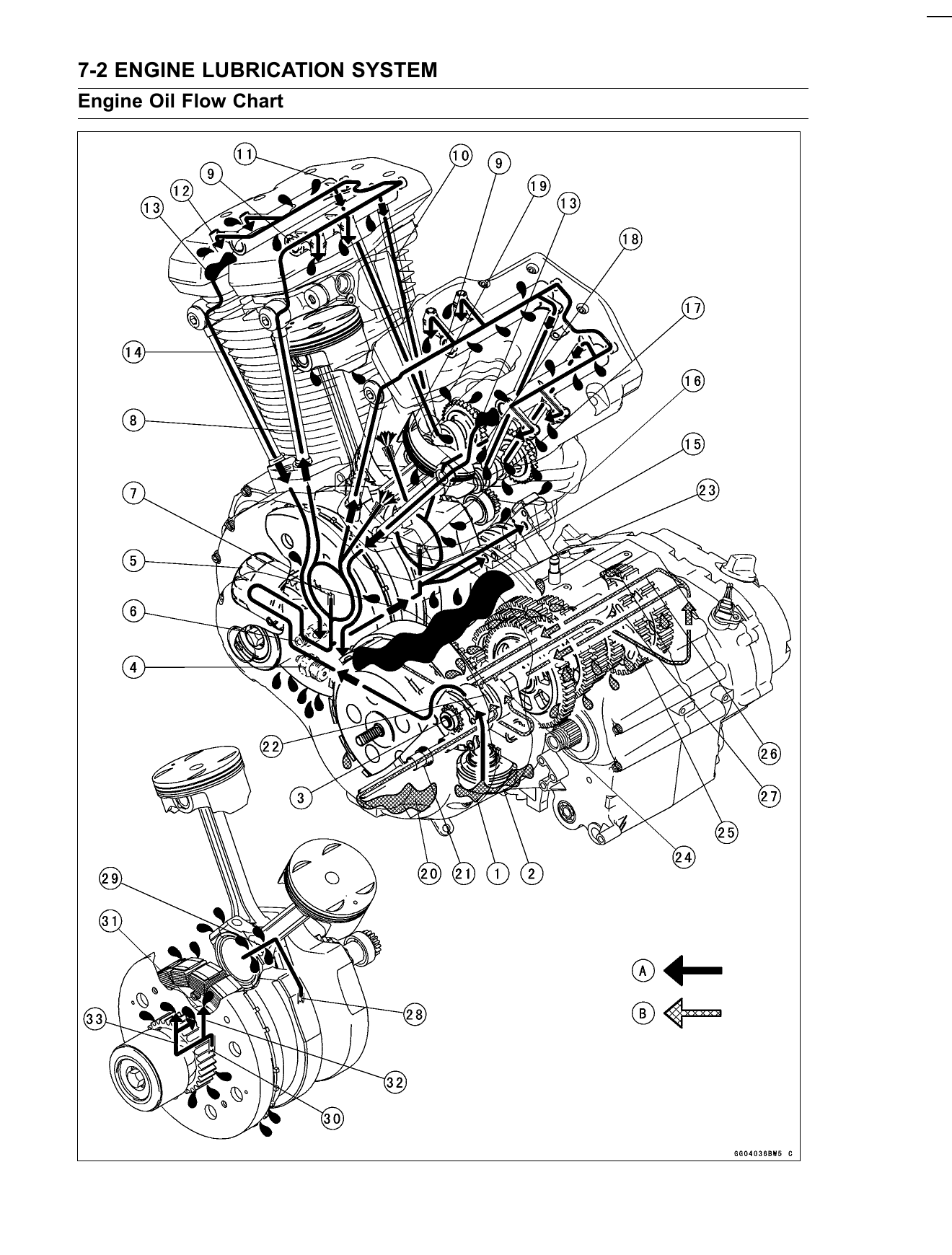

The VN2000 uses a semi-dry-sump system. A feed pump draws oil from the transmission room through a screen, past the oil-pressure switch and filter, and the relief valve caps the pressure; oil then reaches the crankshaft, the rocker shafts and the HLAs, the camshaft oil pipes and jets, and the cam damper. Separate scavenge pumps return oil from the crank room and the clutch room back to the transmission room. Because the level is held in the transmission room rather than a wet sump, the dipstick reading depends on engine position and speed when the engine stops — so the oil-level procedure below must be followed exactly.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
Running the engine with insufficient, deteriorated or contaminated oil causes accelerated wear and can seize the engine or transmission. If the oil-pressure warning light stays on above idle, stop the engine immediately and find the cause.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
Engine oil
| Type | API SE/SF/SG, or SH/SJ with JASO MA |
|---|---|
| Viscosity | SAE 10W-40 |
| Capacity — filter not removed | 4.4 L |
| Capacity — filter removed | 4.6 L |
| Capacity — engine dry (rebuild) | 5.5 L |
| Level | Between upper/lower lines (wait 2–3 min) |
Oil pressure
| Oil pressure @2000 rpm, oil temperature 90 °C. | 127 – 167 kPa (1.27 – 1.67 bar) |
|---|

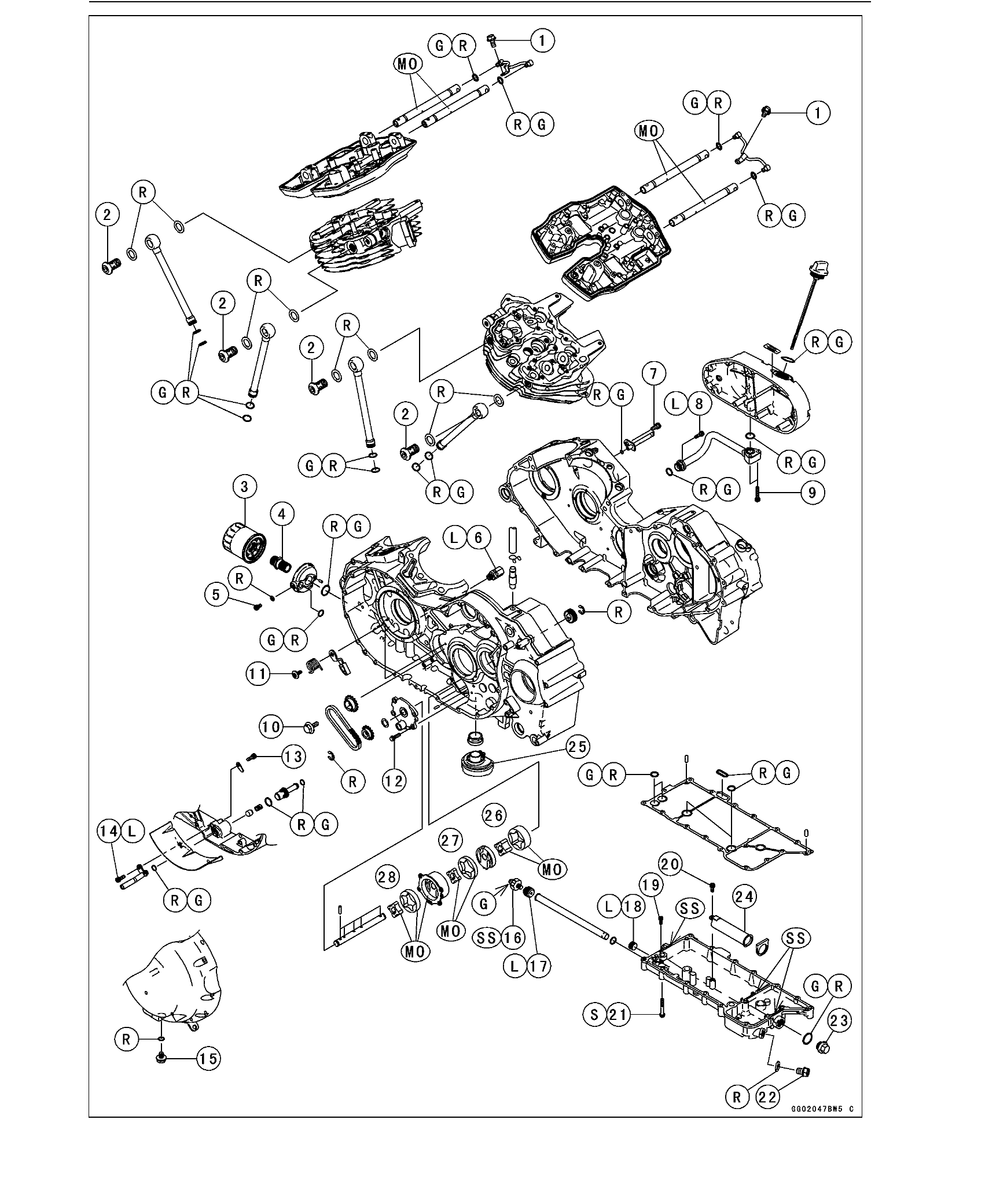

Lubrication fastener torques. Remarks: S sequence · L locking agent · SS silicone sealant.
Lubrication fasteners
| Fastener | Torque | Remarks |
|---|---|---|
| Oil filter | 17.5 N·m | R |
| Oil-pressure switch | 15 N·m | SS |
| Relief valve | 15 N·m | L |
| Oil passage bolt | 29 N·m | — |
| Cylinder-head oil-pipe banjo bolts | 54 N·m | — |
| Rocker-shaft / camshaft oil-pipe bolts | 9.8 N·m | — |
| Oil-pump cover bolts | 9.8 N·m | — |
| Oil-screen bolt (crank room) | 9.8 N·m | — |
| Oil-pan bolts | 15 N·m | S |
| Left oil-pan drain plug | 20 N·m | — |
| Right oil-pan drain plug | 15 N·m | — |
| Clutch-cover drain plug | 21 N·m | — |
Apply silicone sealant (Kawasaki Bond 56019-120) to the oil-pressure-switch threads. Re-torque oil-pan bolt No.1 again after all pan bolts are tightened in sequence.
The semi-dry-sump dipstick needs a specific routine to read true.
Check the oil level
- 1
Stand the motorcycle vertical (not on the side stand) on level ground.
- 2
If the bike has just run, wait 2–3 minutes for the oil to drain down. If the oil is cold or just changed, idle the engine until the transmission-room oil warms about 50 °C (this fills the filter), then stop and wait 2–3 minutes.
CautionDo not race the engine before the oil has reached every part — it can cause seizure.
- 3
Remove the filler cap/dipstick, wipe it, thread it fully in, then remove it again and read the level — it should sit between the H and L marks.
- 4
Top up through the filler with the same grade/make if low; draw off the excess with a syringe if high.
- Periodic Maintenance: oil & filter →Drain plugs, fill quantity and the filter-change procedure.
- Owner's manual: Fuel & Oil →Owner-level oil grade, capacity and dipstick check.
Measuring oil pressure at the switch port and checking the relief valve.
Oil-pressure measurement
Engine warmed up.
Oil-pressure gauge 57001-125 · Oil-pressure gauge adapter PT 1/8 57001-1033
- 1
Slide back the rubber boot, disconnect the oil-pressure-switch lead and unscrew the switch.
- 2

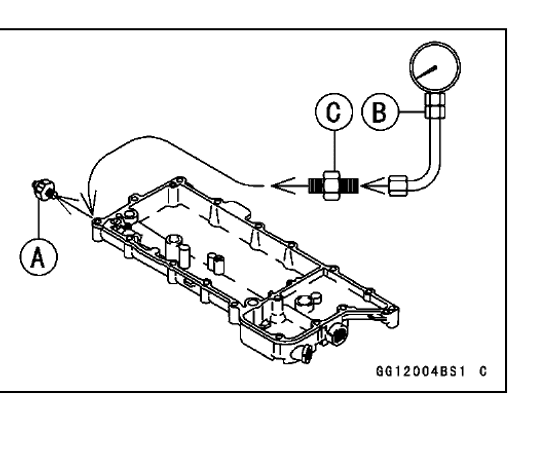

Fit the oil-pressure gauge and adapter to the switch hole.
- 3
Start and warm the engine, run it at 2000 rpm with oil at 90 °C and read the gauge — standard 127–167 kPa.
Much lower → check the oil pump, relief valve and bearing wear. Much higher → check the oil screen and passages for clogging, and replace the filter.
- 4
Stop the engine, remove the gauge and refit the switch with silicone sealant on its threads.
Torque15 N·mWarningHot engine oil drains from the passage when the switch is removed — guard against burns.
To inspect the relief valve the crankcase must be split (Crankshaft/Transmission chapter). With the valve out of the left crankcase half, push it in with a soft rod and check that it slides smoothly and returns under spring pressure. Inspect it assembled — taking it apart can change how it performs. If it is rough, wash it in high-flash-point solvent and blow it clean with compressed air.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
Clean oil screens and the relief valve only in a well-ventilated area with high-flash-point solvent — never gasoline or low-flash solvent — and keep all sparks and flames away.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
