Fuel System (DFI)

The Denso digital fuel-injection system: two-barrel throttle body, injectors, fuel pump & pressure, the sensor suite, and the FI self-diagnosis service-code (DTC) table.

A Denso digital fuel-injection system meters fuel and sets ignition timing from a suite of sensors — there is no carburettor and nothing to adjust on the fuelling under normal service.

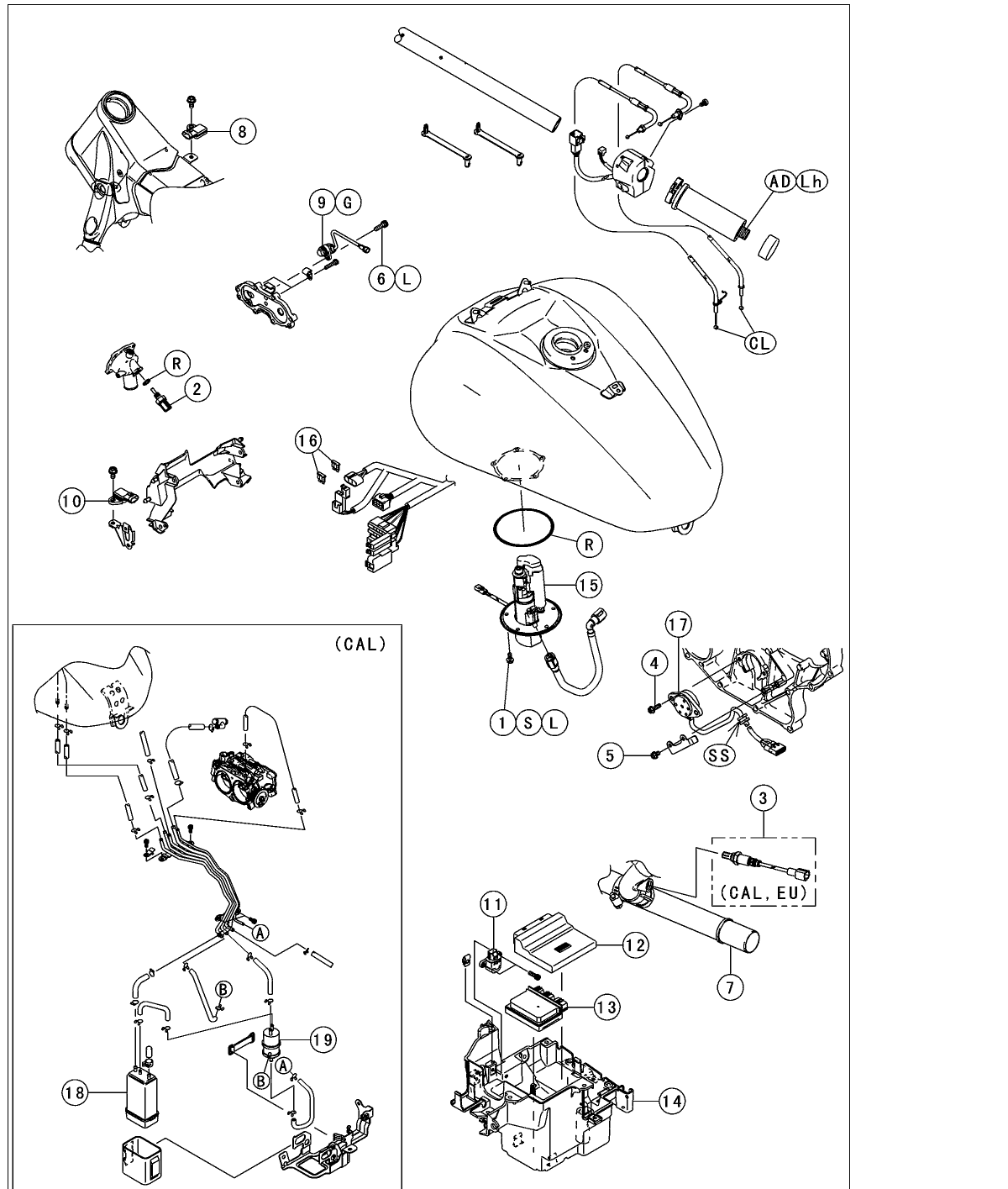

Fuel-system exploded view: fuel tank with the in-tank fuel pump (15) on its O-ring (R), throttle grip and cables, two-barrel throttle body, ECU (12), relay box (13), battery case (14) and the sensors — inlet-air-pressure (8), camshaft-position (9), atmospheric-pressure (10), vehicle-down (11) and gear-position switch (17). The boxed (CAL) canister/separator (18/19) and (CAL, EU) oxygen sensor (3) fit emissions-controlled markets only. Fuel-pump bolts 9.8 N·m (S, L); oxygen sensor 44 N·m.
Kawasaki VN2000-A1 Service Manual, Fuel System (DFI) “Exploded View” (p. 3-4/3-5).

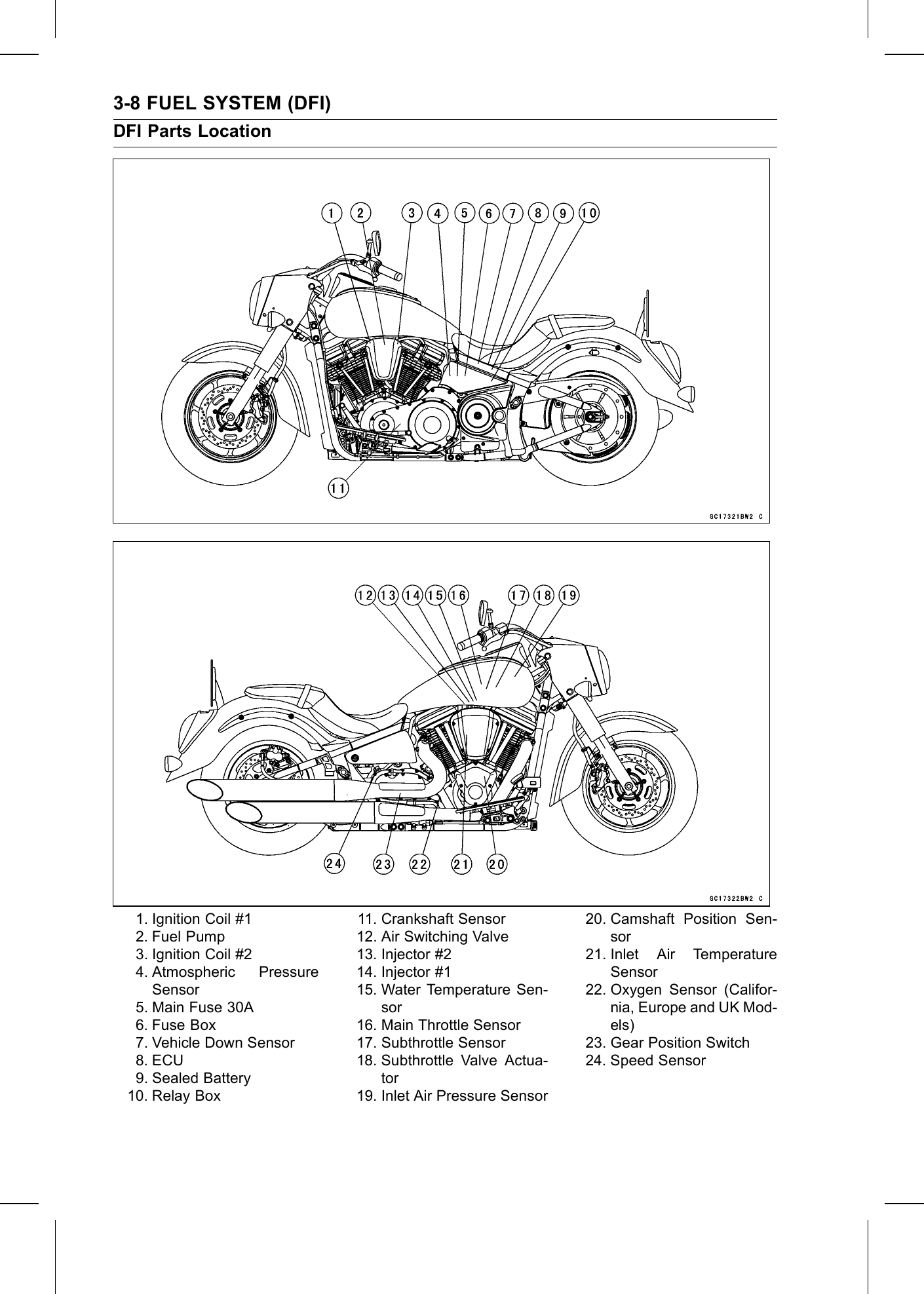

DFI parts location: 1 ignition coil #1 · 2 fuel pump · 3 ignition coil #2 · 4 atmospheric-pressure sensor · 5 main fuse 30 A · 6 fuse box · 7 vehicle-down sensor · 8 ECU · 9 sealed battery · 10 relay box · 11 crankshaft sensor · 12 air-switching valve · 13 injector #1 · 14 injector #2 · 15 water-temperature sensor · 16 main throttle sensor · 17 subthrottle sensor · 18 subthrottle valve actuator · 19 inlet-air-pressure sensor · 20 camshaft-position sensor · 21 inlet-air-temperature sensor · 22 oxygen sensor (CA/EU) · 23 gear-position switch · 24 speed sensor.
Kawasaki VN2000-A1 Service Manual, “DFI Parts Location” (p. 3-8).

The VN2000 uses a Denso Digital Fuel Injection (DFI) system in place of a carburettor. The Electronic Control Unit (ECU) reads engine speed, throttle position, inlet-air pressure and temperature, atmospheric pressure, coolant temperature, gear position and lean angle, then computes the injection quantity and ignition timing for each cylinder. A high-pressure electric fuel pump feeds two injectors through a regulated rail. California and European models add a heated oxygen (O₂) sensor for closed-loop mixture trim.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)

Because the mixture is computed, there is nothing to tune by hand: no jets, no pilot screw, and the throttle and subthrottle sensors are non-adjustable and non-removable. Routine owner attention is limited to the air-cleaner element, idle speed, throttle free play and reacting to the FI warning indicator. Faults are read back as numeric service codes (see Self-diagnosis below).src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)

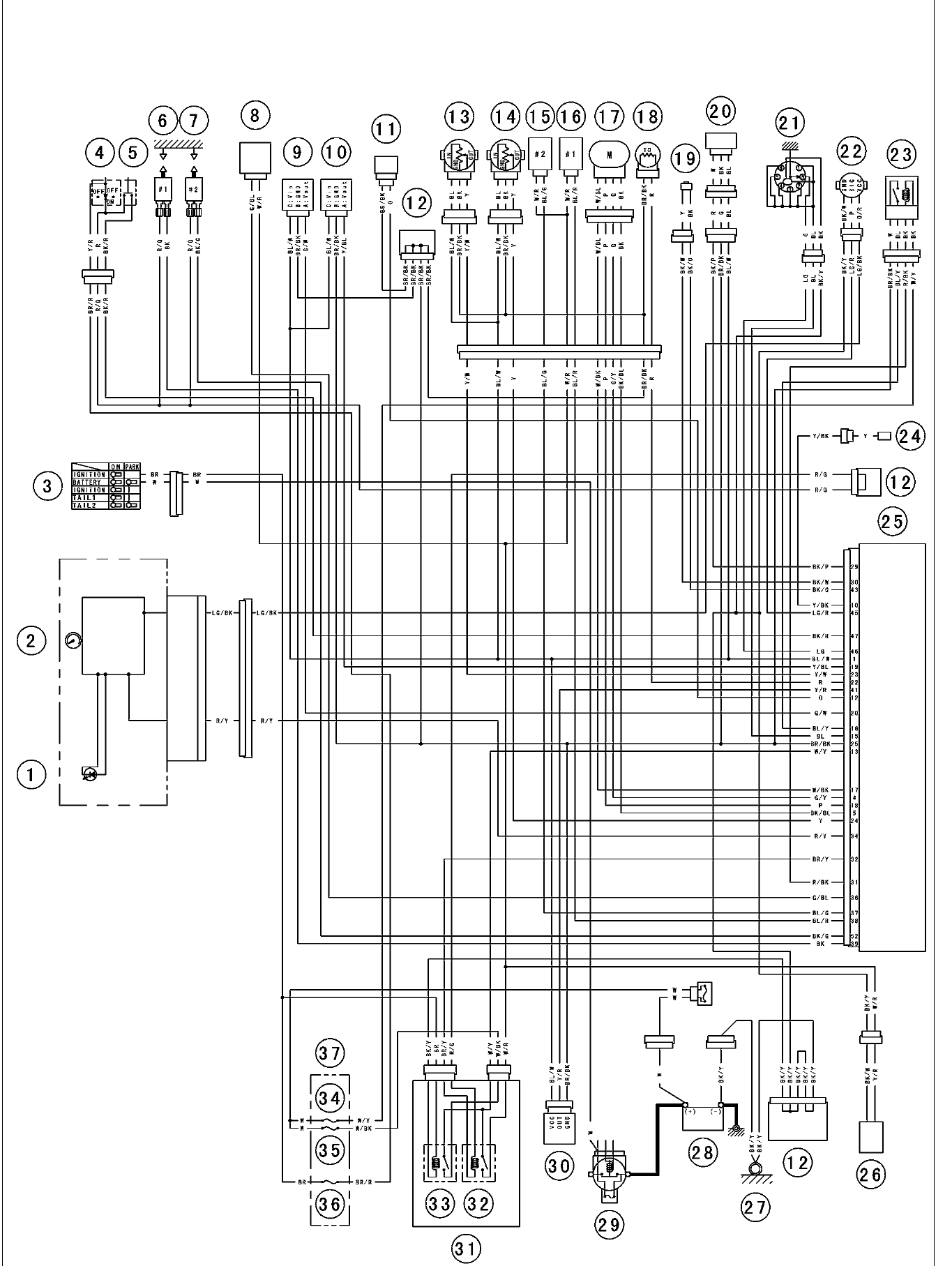

DFI system wiring diagram. Key components: 1 FI indicator LED · 2 speedometer · 3 ignition switch · 6/7 ignition coils · 8 air-switching valve · 9 atmospheric-pressure sensor · 10 inlet-air-pressure sensor · 11 water-temperature sensor · 13 main-throttle sensor · 14 subthrottle sensor · 15/16 injectors · 17 subthrottle valve actuator · 18 inlet-air-temperature sensor · 19 crankshaft sensor · 20 camshaft-position sensor · 21 gear-position switch · 22 speed sensor · 23 oxygen sensor (CA/EU) · 24 self-diagnosis terminal · 25 ECU · 26 fuel pump · 28 battery · 29 main fuse 30 A · 30 vehicle-down sensor · 31 relay box · 32 fuel-pump relay · 33 ECU main relay · 37 fuse box. The ECU connector (25) lists each pin’s wire colour and number.
Kawasaki VN2000-A1 Service Manual, Fuel System (DFI) “DFI System Wiring Diagram” (p. 3-14/3-15).
Related

The DFI service data — idle, fuel pressure, injector and sensor values used during diagnosis.

System & throttle body

System & throttle body
DFI system makeDenso
Throttle bodyTwo-barrel, ⌀ 46 mm
Idle speed900 ± 50 r/min
Throttle grip free play2 – 3 mm
Air-cleaner elementViscous paper element
ECU typeDigital memory, with built-in IC igniter, resin-sealed

Fuel pressure (high-pressure line)

Fuel pressure (high-pressure line)
Right after ignition SW ON (pump running)304 kPa
After pump runs 3 s and stops (pump stopped)280 kPa
Engine idling (pump running)304 kPa

Injectors & fuel pump

Injectors & fuel pump
Injector typeINP-284 · one-spray, 12-hole nozzle
Injector resistance (at 20 °C)11.7 – 12.3 Ω
Static injection quantity379.9 – 403.5 mL/min
Fuel pump typeFriction pump
Fuel pump discharge≥ 67 mL per 3 s

Sensor reference values

Sensor reference values
SensorParameterValue
Main / subthrottle sensorResistance4 – 6 kΩ
Main / subthrottle sensorOutput voltage (idle → full)1.02 – 4.62 V DC
Inlet-air-pressure sensorOutput (std. atmospheric)3.80 – 4.20 V DC
Inlet-air-temperature sensorResistance @ 20 °C / 80 °C1.6 – 3.7 kΩ / 0.24 – 0.43 kΩ
Water-temperature sensorResistance @ 40 °C / 100 °C1.055 – 1.199 kΩ / 0.151 – 0.162 kΩ
Vehicle-down sensorDetection angle / time> 45° ± 5° per bank / 0.5 – 1.0 s
Subthrottle valve actuatorResistance≈ 5 – 7 Ω
Oxygen sensor (CA/EU)Output rich / lean0.7 – 0.8 V / ≈ 0.1 V
Oxygen sensor heater (CA/EU)Resistance @ 20 °C14.1 – 19.3 Ω

Reference values for fault tracing; sensor input supply is 4.75 – 5.25 V DC. Measure with the Kawasaki hand tester per the relevant service-code procedure.

Fuel-system fastener torques. Remarks: L non-permanent locking agent · S apply silicone sealant.

Fuel system fasteners

Fuel system fasteners
FastenerTorqueRemarks
Fuel pump mounting bolts9.8 N·mL, S
Throttle-body-assy holder bolts9.8 N·mL
Relief valve15 N·mL

The fuel-pump bolts are torqued low and sealed — over-tightening distorts the pump flange and the tank-top seal. The relief valve lives in the lubrication circuit but is listed with the fuel-side fasteners in the manual.

Petrol under pressure plus a voltage-sensitive ECU — these rules prevent a fire, a ruined ECU or a seized pump.

Danger

When any fuel hose is disconnected, fuel can spout out under residual line pressure even with the engine off. Cover the joint with clean cloth, work away from sparks and flame, and never turn the ignition ON with a fuel hose off — the pump will run and spray fuel.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)

Caution

Do not run the fuel pump dry — it will seize. Do not add fuel-antifreeze chemicals to the petrol; they corrode and clog the fuel system. Blow the outer surfaces of fuel parts clean with compressed air before removing them.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)

The DFI system runs on a 12 V sealed battery — fit no other type. Protect the ECU: never reverse the battery leads; never disconnect the battery or any electrical connection with the ignition ON or the engine running (the surge damages terminals and DFI parts); remove the battery from the bike before charging it. When disconnecting DFI connectors, switch the ignition OFF and disconnect the battery (–) terminal first, pull the connector not the lead, and click every connector fully home before starting. Do not turn the ignition ON with any DFI connector unplugged — the ECU stores a fault code. Keep water off the connectors and DFI parts, and always refit the oil filler/level cap after topping up oil so there is no inlet-air leak.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)

When the ECU detects a sensor or actuator fault it lights the FI indicator and stores a numeric service code (DTC) you can read back.

The ECU continuously monitors the DFI and ignition electrics. If a signal falls outside its usable range or a circuit goes open/short, the ECU lights the FI warning indicator and memorises a two-digit service code. The codes are read out by the blink pattern of the FI indicator LED (or with the Kawasaki diagnostic tool) and cleared after the fault is fixed. A stored code points at a sensor, actuator or its wiring — not necessarily a failed part; check the wiring and connectors first, then the part’s input/output voltage and resistance, and only replace the ECU once everything else checks good.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)

Service code table

* California and European models only.

Service code table
CodeFaulty part — malfunction, wiring open or short
11Main throttle sensor
12Inlet-air-pressure sensor
13Inlet-air-temperature sensor
14Water-temperature sensor
15Atmospheric-pressure sensor
21Crankshaft sensor
23Camshaft-position sensor
24Speed sensor
25Gear-position sensor
31Vehicle-down sensor
32Subthrottle sensor
33 *Oxygen sensor — inactivation
41Injector #1
42Injector #2
45Fuel pump
51Ignition coil #1 primary winding
52Ignition coil #2 primary winding
55Starter relay
56Radiator-fan relay
62Subthrottle valve actuator
64Air-switching valve
66Decompression solenoid
67 *Oxygen-sensor heater
85Subthrottle stepping driver
94 *Oxygen sensor — malfunction

The ECU may itself be involved: if every listed part and circuit checks good, verify the ECU ground and power supply, and replace the ECU only if those are good too.

Note

Limp-home backups: if the main throttle sensor (code 11) signal leaves its 0.2 – 4.8 V usable range, the ECU locks ignition timing at the closed-throttle value and runs the DFI in the “D-J” (speed-density) method so the bike still runs. If the inlet-air-pressure sensor (code 12) also fails, it falls back to the “α-N” (throttle-angle/rpm) method. The bike will run but down on response — fix the fault rather than relying on the backup.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)

The two owner-level fuelling checks — both share their procedure with Periodic Maintenance.

Check idle with the engine fully warm: it should hold 900 ± 50 r/min and must not change when you sweep the handlebars lock to lock (if it does, the throttle cables are routed wrong or adjusted too tight). Set idle on the throttle-body adjusting screw. Throttle free play is the 2–3 mm of slack at the grip before the throttle starts to open; set it at the cable adjusters. Both procedures are detailed on the Periodic Maintenance page.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)

Procedures (Periodic Maintenance)

How the fuel pressure is checked when a code or a running fault points at fuelling.

Fuel pressure check (outline)

Done with the engine running and the gauge teed into the high-pressure line. Relieve pressure before opening the line.

Tools & parts

Fuel Pressure Gauge Adapter 57001-1593 · a 0–500 kPa fuel-pressure gauge

  1. 1

    Stop the engine and relieve the residual fuel pressure before disconnecting any fuel fitting.

    Warning

    Petrol is under pressure and highly flammable. Work in a ventilated area away from sparks and flame; catch any fuel in clean cloth.

  2. 2

    Connect the fuel-pressure gauge into the high-pressure line with the adapter 57001-1593.

  3. 3

    Turn the ignition ON and read the pressure with the pump running.

    Expect ~304 kPa right after switch-on; it settles to ~280 kPa a few seconds after the pump stops.

  4. 4

    Start the engine and confirm ~304 kPa at idle.

    Low or unstable pressure points to the pump or its built-in regulator — the regulator is not separately serviceable; replace the fuel pump.

  5. 5

    Relieve pressure again, remove the gauge and reconnect the line, then check for leaks with the pump running.

Where low/high fuel pressure shows up

DFI special tools

DFI special tools
ToolPart No.
Hand tester57001-1394
Fuel pressure gauge adapter57001-1593
Needle adapter set57001-1457
Throttle sensor setting adapter57001-1400
Fuel hoses57001-1607
Kawasaki Bond (silicone sealant)56019-120
