Service Manual · Chapter 17
Appendix
The cable/wire/hose routing reference and the full Troubleshooting Guide (except DFI) — a symptom-to-cause fault tree covering starting, running, overheating, the clutch, gearbox, noises, smoke, handling and the brakes.
Chapters· Appendix
Source: Service Manual — pp. 17-1 … 17-60src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
The manual’s routing foldouts, distilled to the rules that matter when you reassemble.

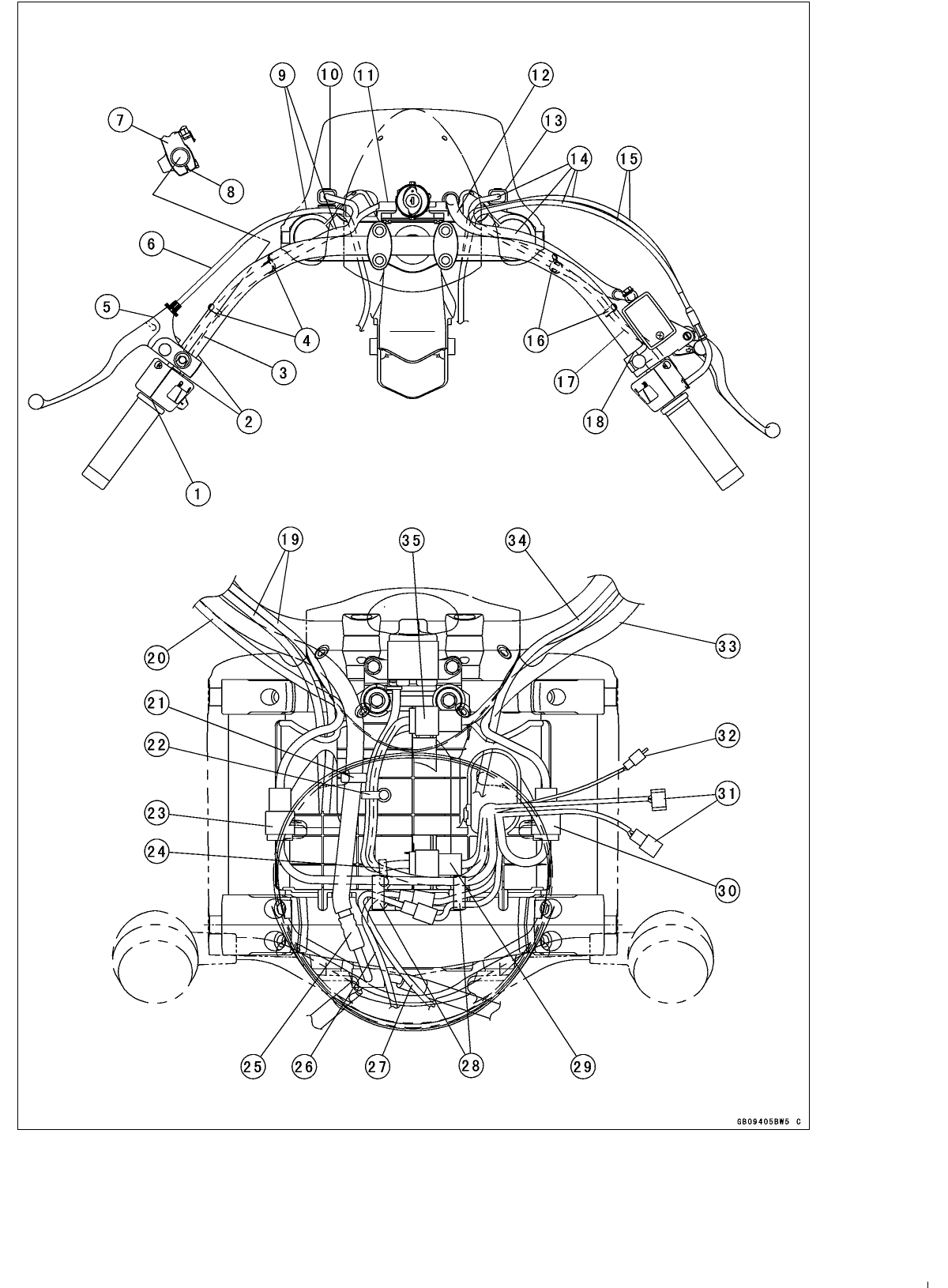

Cable, wire & hose routing — the first Appendix plate. Top: handlebar leads, throttle and clutch cables, front-brake hose and switch-housing leads (callouts 1–18). Bottom: engine-top wiring and hoses around the throttle bodies (callouts 19–35). Key rules: seat each grip to its punch mark (1, 2, 8), keep the gap at the left switch-housing clamp 2–3 mm (5), and run the switch-housing leads from the headlight-upper-cover recess to the front of the steering-stem head (9, 14).
Kawasaki VN2000-A1 Service Manual, Appendix “Cable, Wire, and Hose Routing” (pp. 17-2 … 17-3).

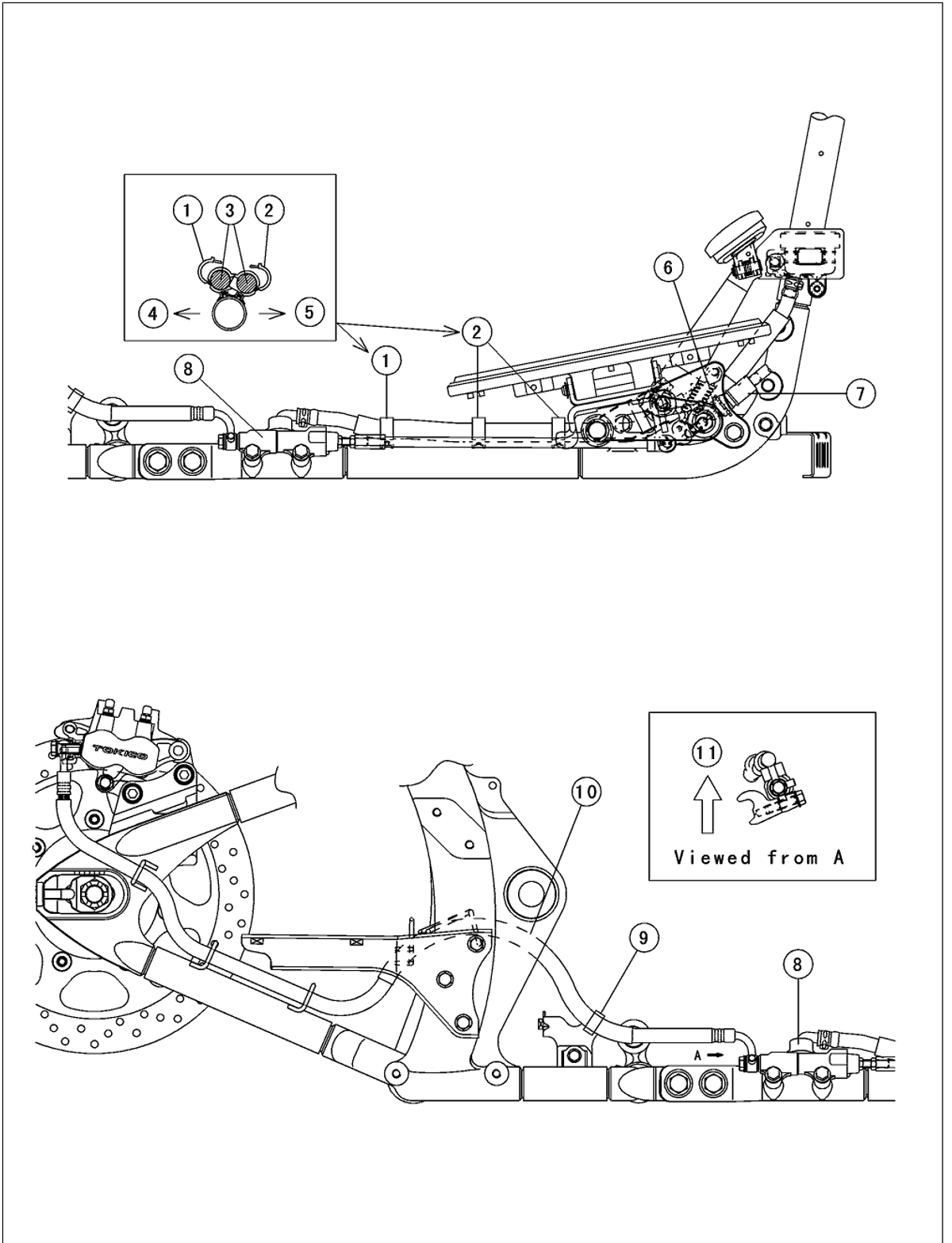

Rear-brake-hose routing plate. 1 clamp · 2 clamps · 3 brake hose · 4 right side · 5 engine side · 6 insert the clamp in the regulator bracket · 7 rear brake-light switch · 8 rear master cylinder · 9 insert the clamp in the coolant-reservoir bracket · 10 run the brake hose between the swingarm and frame · 11 upper side. The inset shows the clamp orientation (right side vs engine side); align each clamp before tightening so the hose is not pinched, twisted or stretched when the suspension moves.
Kawasaki VN2000-A1 Service Manual, Appendix “Cable, Wire, and Hose Routing — rear brake hose” (p. 17-35).

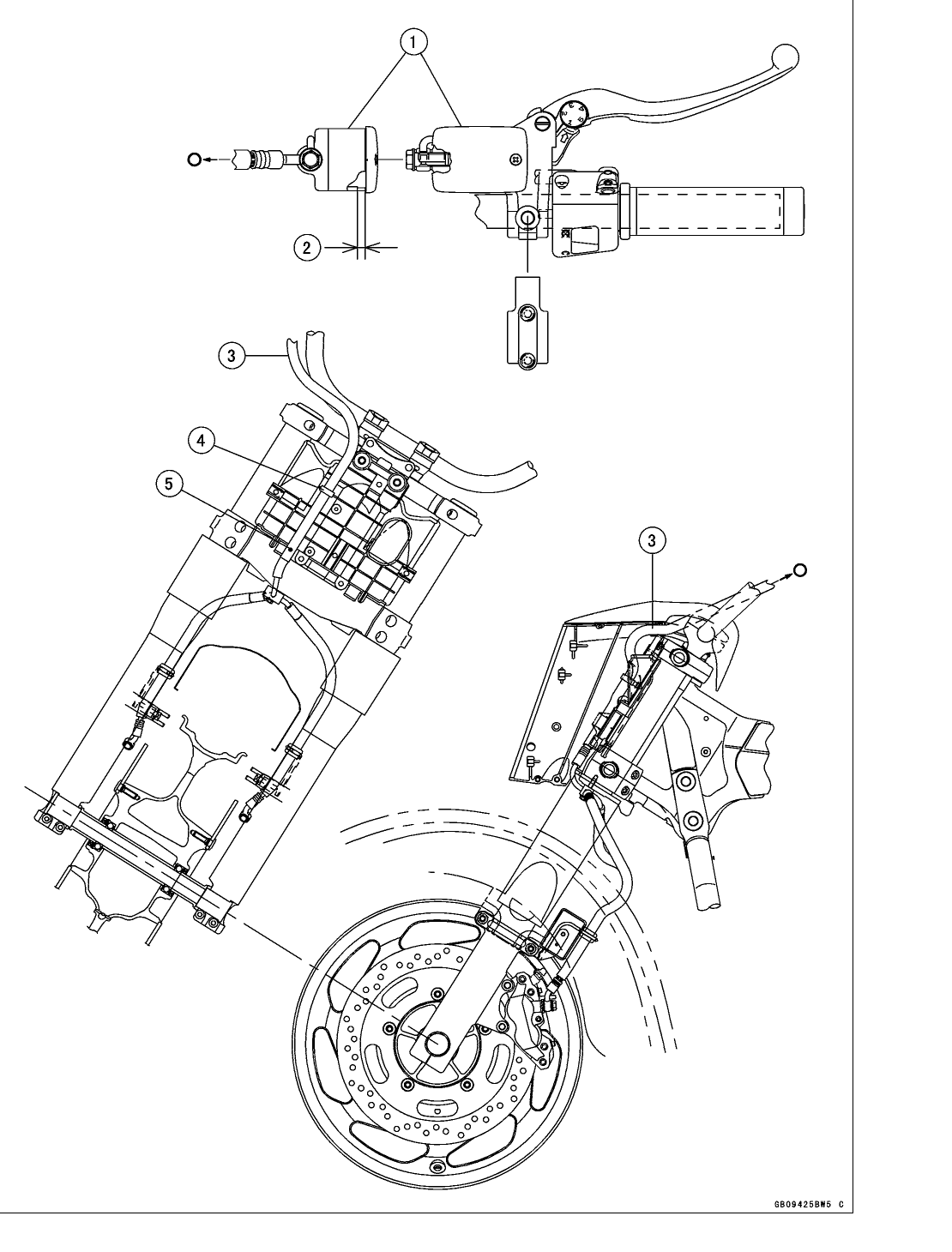

Front-brake-hose routing plate. 1 front brake-fluid reservoir · 2 = 6 mm gap between the hose and the reservoir · 3 brake hose · 4 clamp · 5 white paint mark. Hold ≈6 mm clearance (2) where the hose passes the reservoir, set each clamp (4) to its white paint mark (5), and route the hose so it is not pinched, twisted or stretched as the fork moves and the steering swings lock-to-lock.
Kawasaki VN2000-A1 Service Manual, Appendix “Cable, Wire, and Hose Routing — front brake hose” (p. 17-32 / legend p. 17-33).

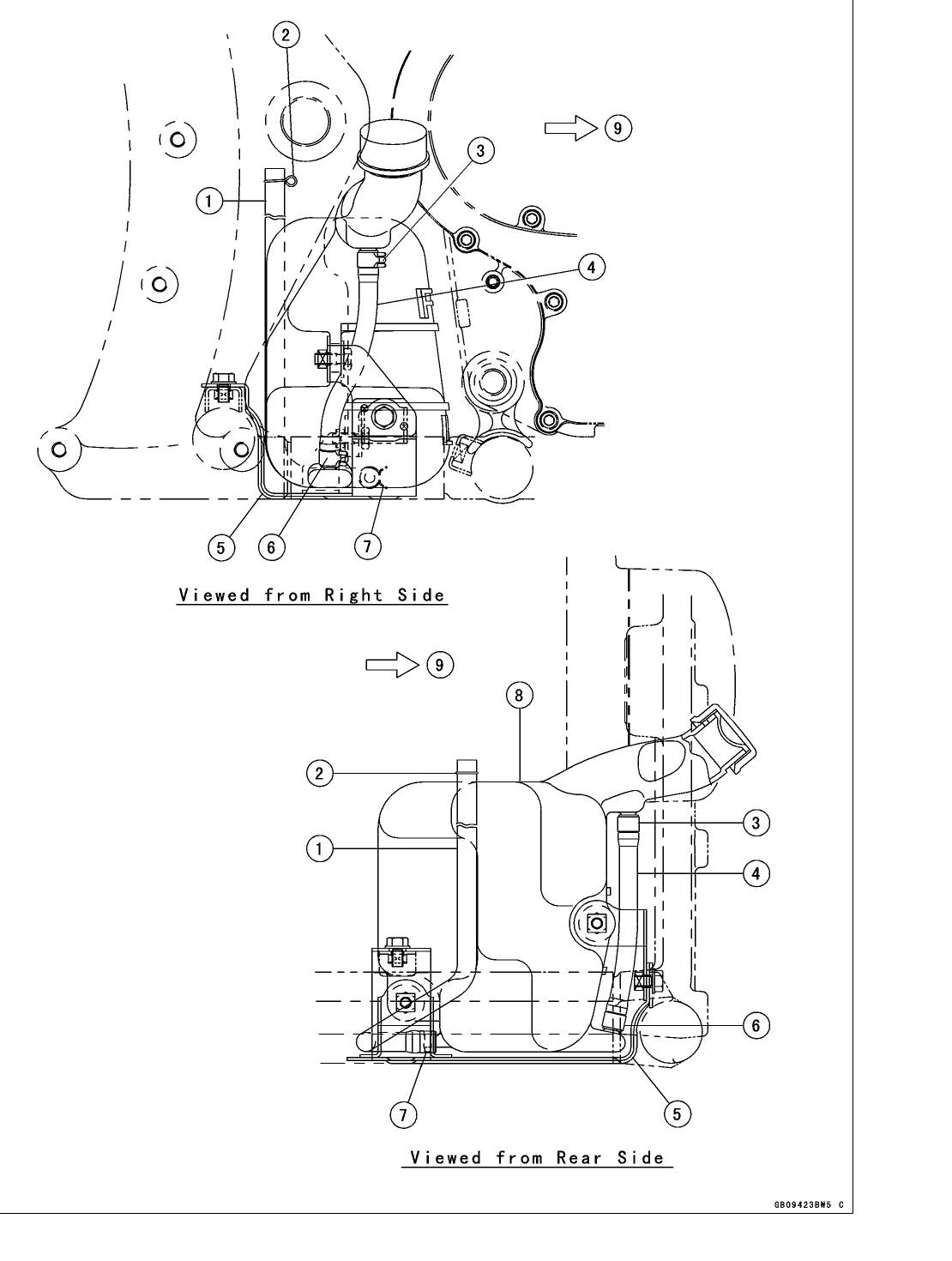

Coolant-hose routing plate (viewed from the right side and from the rear). 1 coolant hose · 2, 3 clamp · 4 coolant-level-gauge tube · 5 frame bracket · 6, 7 clamp · 8 coolant reservoir · 9 “Front”. Seat the reservoir on its frame bracket (5), connect the coolant hose (1) and the level-gauge tube (4), and fasten each clamp (2, 3, 6, 7) so no hose is kinked — a pinched coolant hose can cause overheating.
Kawasaki VN2000-A1 Service Manual, Appendix “Cable, Wire, and Hose Routing — coolant hose” (p. 17-30 / legend p. 17-31).
Note
The Appendix carries 27 routing plates (pp. 17-2 … 17-55). Reassemble to these key rules: align each hose/clamp paint-mark before tightening the clamp; seat the grip up to its punch mark and align the mating surface; run the front-brake hose with ≈6 mm clearance at the reservoir; route switch-housing leads from the recess of the headlight upper cover to the front of the stem head; fit the frame-ground terminal flat-side-down; and make sure no cable, wire or hose is pinched, twisted or stretched when the steering is turned lock-to-lock. Use the per-system routing plate in each chapter as you refit it.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
Per-system routing lives with each chapter
- Fuel System (DFI) →Throttle-body, fuel and air-line routing.
- Cooling System →Water-hose and reservoir-tube routing with paint-mark alignment.
- Brakes →Brake-hose routing and the 6 mm reservoir clearance.
- Electrical System: wiring diagram →The harness the lead-routing plates follow.
Pick the symptom, scan the likely causes. A rough guide, not an exhaustive list — for most DFI faults use the Fuel System self-diagnosis instead.
Note
This is a rough guide to the more common difficulties, not every possible cause. For most DFI (fuel-injection) faults, use the self-diagnosis service codes in the Fuel System chapter first.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
Engine doesn’t start / starting difficulty
| Sub-symptom | Likely causes |
|---|---|
| Starter motor not rotating | Starter-lockout or gear-position switch fault · starter-motor fault · low battery · starter relays not operating · starter button not contacting · wiring open/short · ignition or engine-stop switch fault · blown fuse |
| Starter turns but engine doesn’t | Starter-clutch fault · vehicle-down sensor (DFI) come adrift |
| Engine won’t turn over | Seizure: valve, rocker arm, piston/cylinder, crankshaft, con-rod small/big end, transmission gear/bearing, camshaft or balancer bearing |
| No fuel flow | No fuel in tank · fuel-pump fault · tank vent blocked · fuel filter clogged · fuel line clogged |
| Engine flooded | Clean & re-gap plugs · faulty starting technique — do NOT crank with the throttle wide open (DFI adds more fuel) |
| No spark / weak spark | Vehicle-down sensor adrift · ignition not ON · engine-stop OFF · clutch/neutral/side-stand interlock not satisfied · low battery · plug dirty/broken/mis-gapped · plug cap or HT lead fault · plug incorrect · IC igniter (ECU) fault · interlock-switch fault · crankshaft-sensor or coil fault · shorted/open wiring · blown fuse |
| Compression low | Plug loose · head not torqued · cylinder/piston/ring worn · ring/groove clearance excessive · head gasket damaged · head warped · valve spring weak · valve not seating · decompression mechanism stuck open · HLA damaged or oil passage clogged |
Poor running
| Symptom | Likely causes |
|---|---|
| Poor running at low speed | Weak spark (low battery · plug/cap/HT-lead fault · coil or crank-sensor fault · IC igniter) · mixture wrong (air cleaner clogged/unsealed · tank vent blocked · throttle-body or air-cleaner duct loose · O-ring damaged · fuel-pump fault) · compression low |
| Poor running / no power at high speed | Same weak-spark and mixture causes, plus throttle not opening fully and a clogged or restricted intake |
| Overheating | Firing incorrect (plug dirty/incorrect · IC igniter) · mixture too lean (throttle-body/air-cleaner-duct loose, O-ring damage, air cleaner unsealed/clogged) — see also the Cooling System chapter |
KLEEN (catalyst) models: do not run the engine with a cylinder misfiring, do not push-start with a dead battery, and do not coast with the ignition off — have a misfire corrected before riding to avoid overheating the muffler/catalyst.
Clutch & gearbox
| Symptom | Likely causes |
|---|---|
| Clutch slips | Friction/steel plates worn or warped · spring-plate free-play maladjusted · clutch spring weak/broken · hub or housing unevenly worn · no clutch-lever play · inner-cable or release-mechanism fault |
| Clutch drags (won’t disengage) | Plate warped/rough · free-play maladjusted · uneven spring compression · oil deteriorated/too thick/over-filled · housing frozen on shaft · hub nut loose · hub spline damaged · plates mis-installed · excessive lever play · release-mechanism fault |
| Won’t go into gear | Clutch not disengaging · shift fork bent/seized · gear stuck on shaft · set-lever binding · shift-return spring weak/broken/pin loose · shift-arm spring broken or arm broken |
| Jumps out of gear | Shift-fork ear worn/bent · gear groove or dogs/dog-holes worn · shift-drum groove worn · set-lever spring weak · fork guide-pin worn · shaft/gear splines worn |
Noise, oil light & smoke
| Symptom | Likely causes |
|---|---|
| Abnormal engine noise | Knocking: IC igniter fault · carbon in combustion chamber · poor/incorrect fuel (use the recommended high-octane) · plug incorrect · overheating. Plus piston slap, valve/HLA and bearing noises |
| Abnormal drive-train noise | Clutch (housing/plate clearance, worn housing gear, mis-installed outer plate) · transmission (worn bearings/gears, chipped teeth, low oil) · drive line (belt mis-adjusted/worn, sprocket or wheel-coupling worn) |
| Abnormal frame noise | Front fork (low/thin oil, weak/broken spring) · rear shock damaged · disc brake (pad mis-installed/glazed, disc warped, caliper or master-cylinder fault) · loose bracket/fastener |
| Oil-pressure warning light on | Oil pump damaged · oil screen/filter clogged · oil level too low · oil too thin · cam or crank bearings worn · oil-pressure switch or lead damaged · relief valve stuck open · oil-pipe O-ring in the crankcase damaged |
| Exhaust smokes | White: oil ring/cylinder/valve-seal/valve-guide worn or oil over-filled. Black: air cleaner clogged. Brown: air-cleaner duct loose, O-ring damaged, or cleaner unsealed/missing |
Handling, stability & brakes
| Symptom | Likely causes |
|---|---|
| Handlebar hard to turn | Cable/hose/wiring routing wrong · steering-stem nut too tight · stem bearing damaged or under-lubricated · stem bent · tyre pressure too low |
| Handlebar shakes / vibrates | Tyre worn · swingarm sleeve or pivot bearings worn · rim warped or unbalanced · wheel bearing worn · handlebar nuts or stem-head nut loose · excessive axle runout |
| Pulls to one side | Frame bent · swingarm bent/twisted or pivot-shaft runout · steering maladjusted · front fork bent · left/right fork oil level unequal |
| Suspension too hard | Fork oil over-filled or too thick · rear-shock adjustment too hard · tyre pressure too high · fork bent |
| Suspension too soft | Fork oil low/leaking or too thin · rear-shock too soft or leaking · fork/shock spring weak · tyre pressure too low |
| Brake doesn’t hold | Air in the brake line · pad or disc worn · brake-fluid leak |
