Service Manual · Chapter 5

Engine Top End

Cylinder heads, camshafts and rocker gear, the auto-adjusting hydraulic lash adjusters (no valve-clearance check), decompression mechanism, cylinders, pistons and rings, with full wear limits, torque table and the cylinder-compression test.

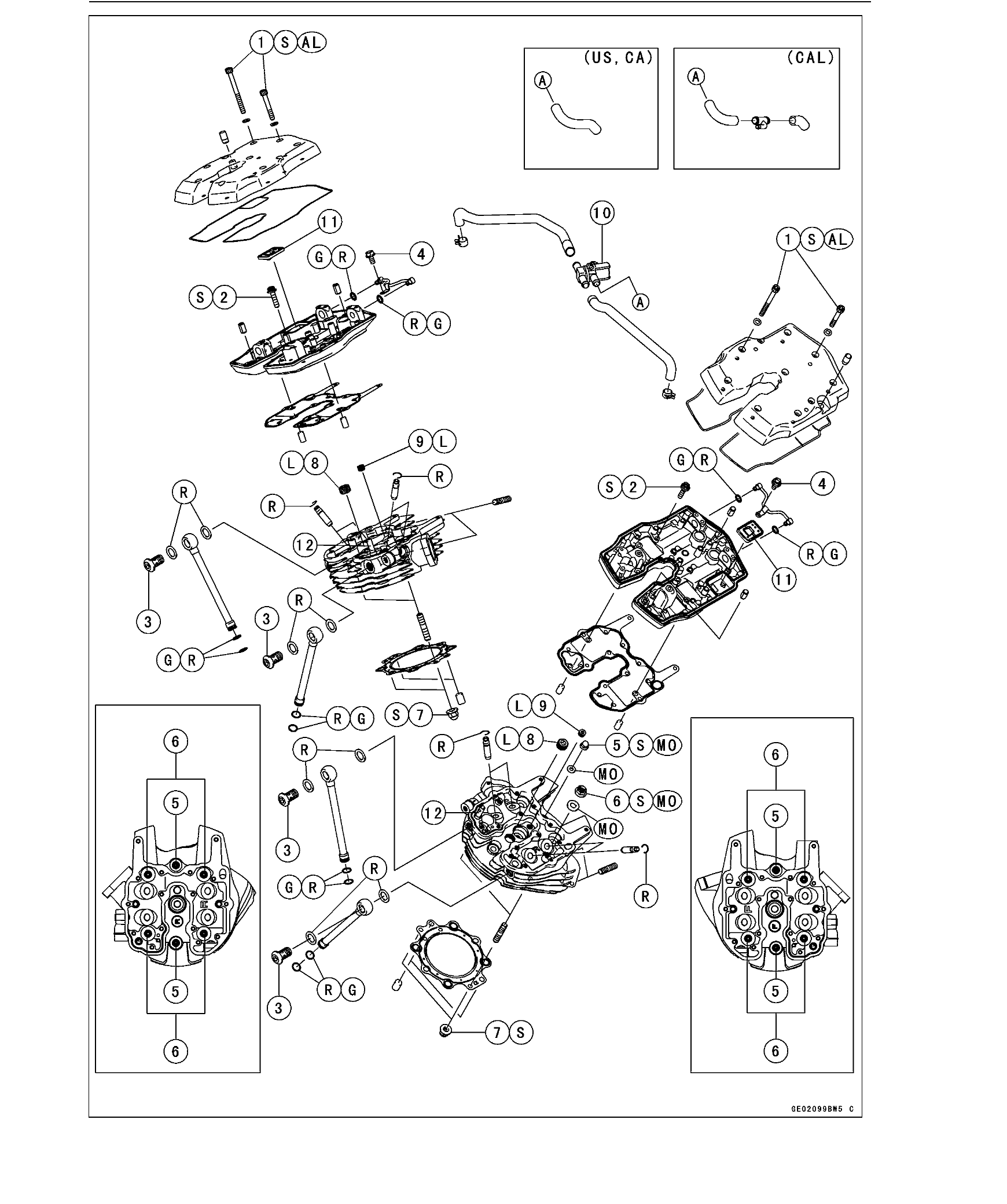

Top-end exploded view (both cylinders): rocker case covers and rocker cases, camshafts and their inner/middle/outer covers, cylinder heads with push rods, cylinders and pistons. AL = tighten alternately/diagonally, S = follow the tightening sequence, MO = molybdenum-disulfide oil, L = locking agent, R = replace.
Kawasaki VN2000-A1 Service Manual, Engine Top End “Exploded View” (p. 5-2).

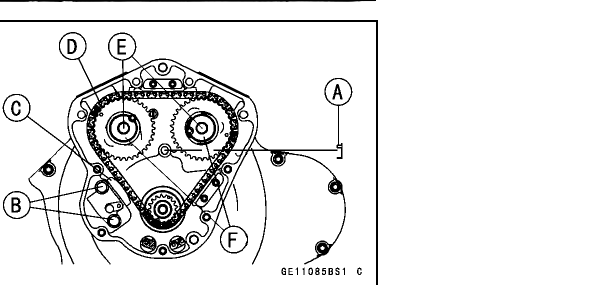

Camshaft drive seen at camshaft removal: the camshaft chain [D] runs over the two camshafts [F] and the lower sprocket, tensioned by the chain tensioner [C] (held by its bolts [B]); the decompression shafts [E] sit in the camshafts and the spacer [A] locates on the right. Note the chain’s routing before lifting the camshafts out so it goes back the same way.
Kawasaki VN2000-A1 Service Manual, Engine Top End “Camshaft Removal” (p. 5-26).
Note

The VN2000 has no scheduled valve-clearance check or shim/screw adjustment: each rocker arm carries a hydraulic lash adjuster (HLA) that takes up clearance automatically from engine-oil pressure. Keep the oil clean and topped up and the valve train stays in adjustment — there is nothing to set.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)

Camshaft, valve, valve-spring and cylinder/piston/ring wear limits, plus the cylinder-compression usable range.

Cylinder head & compression

Cylinder head & compression
ItemStandardService limit
Valve clearanceNon-adjustable (hydraulic lash adjuster)
Cylinder compression (usable range)
Throttle fully open, electric starter, engine warm.
284 – 500 kPa @200 rpm
Cylinder-head warp0.05 mm
Push-rod length295.18 mm
Push-rod bend (TIR)0.2 mm

Camshafts

Camshafts
ItemStandardService limit
Cam height — front exhaust37.351 – 37.467 mm37.25 mm
Cam height — front inlet37.871 – 37.987 mm37.77 mm
Cam height — rear exhaust39.571 – 39.687 mm39.47 mm
Cam height — rear inlet36.411 – 36.527 mm36.31 mm
Rocker-arm inside dia.16.000 – 16.018 mm16.05 mm
Rocker-shaft dia.15.966 – 15.984 mm15.94 mm

Valves & valve springs

Valves & valve springs
ItemStandardService limit
Valve-stem dia. — exhaust5.955 – 5.970 mm5.94 mm
Valve-stem dia. — inlet5.965 – 5.980 mm5.95 mm
Valve/guide clearance — exhaust0.07 – 0.12 mm0.27 mm
Valve/guide clearance — inlet0.04 – 0.10 mm0.25 mm
Valve-seat cutting angles45° · 32° · 60°
Outer valve-spring free length44.76 mm43.2 mm
Inner valve-spring free length39.82 mm38.3 mm

Cylinder, piston & rings

Cylinder, piston & rings
ItemStandardService limit
Cylinder inside dia.102.994 – 103.006 mm103.10 mm
Piston dia.102.965 – 102.980 mm102.82 mm
Piston/cylinder clearance0.043 – 0.070 mm
Ring end gap — top0.25 – 0.35 mm0.7 mm
Ring end gap — second0.40 – 0.55 mm0.8 mm
Ring end gap — oil0.3 – 0.9 mm1.2 mm
Ring/groove clearance — top0.035 – 0.070 mm0.17 mm
Ring/groove clearance — second0.02 – 0.06 mm0.16 mm
Measuring piston-ring end gap. Push the ring [A] a little way into the bore with the piston so it sits square, then measure the gap [B] between its ends with a thickness gauge. Standard end gaps are 0.25–0.35 mm (top), 0.40–0.55 mm (second) and 0.3–0.9 mm (oil); replace the rings if any gap exceeds its service limit (0.7 / 0.8 / 1.2 mm).
Kawasaki VN2000-A1 Service Manual, Engine Top End “Piston Ring End Gap” (p. 5-45).

Top-end fastener torques. Remarks: S tighten in sequence · AL tighten alternately/diagonally · MO molybdenum-disulfide oil · L locking agent.

Top-end fasteners

Top-end fasteners
FastenerTorqueRemarks
Rocker-case-cover bolts12 N·mS, AL
Rocker-case bolts15 N·mS
Rocker-shaft bolts12 N·m
Upper cylinder-head nuts φ10 — first / final15 / 29 N·mS, MO
Upper cylinder-head nuts φ12 — first / final29 / 88 N·mS, MO
Lower cylinder-head nuts25 N·mS
Cylinder mounting bolts25 N·mL
Oil-pipe banjo bolts54 N·m
Camshaft-chain guide bolts12 N·mL
Camshaft-cover bolts (inner/middle/outer/end)12 N·m
Decompression-solenoid bolts9.8 N·m
Coolant drain bolt9.8 N·m
Spark plugs17 N·m
Muffler bracket bolts25 N·m

Head nuts are torqued in two passes in the specified diagonal sequence with molybdenum-disulfide oil on the threads. The spark-plug figure here (17 N·m) matches the owner’s manual; the Periodic-Maintenance plug-replacement procedure prints 18 N·m — see that chapter’s note.

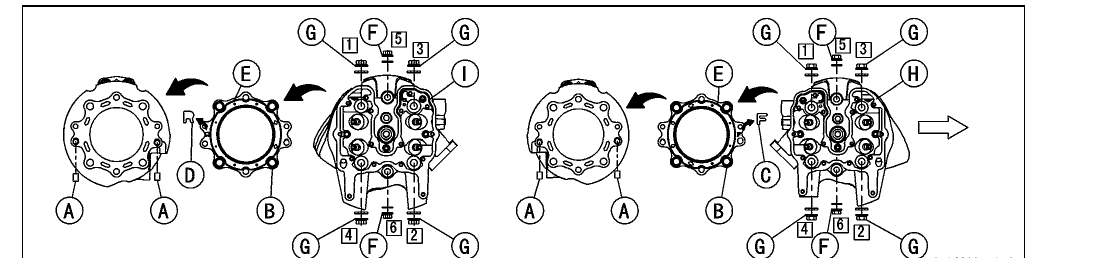

Head-nut tightening order, front cylinder head [H] and rear cylinder head [I]. Tighten the head nuts in the numbered sequence 1→6 (centre-out, diagonal); F = φ10 nuts, G = φ12 nuts. Use molybdenum-disulfide oil on the threads and torque in two passes — φ10 to 15 then 29 N·m, φ12 to 29 then 88 N·m — and only then torque the lower head nuts to 25 N·m. A/B/E are the head gaskets and their locating marks.
Kawasaki VN2000-A1 Service Manual, Engine Top End “Cylinder Head Installation” (p. 5-34).

A compression test is the quickest health check on the top end; readings outside the usable range point at valves, rings or the decompressor.

Compression test

Battery fully charged, engine warm.

Tools & parts

Compression gauge 57001-221 · Compression gauge adapter M14×1.25 57001-1590 · Spark-plug wrench Hex 16 57001-1262

  1. 1

    Warm the engine thoroughly, then stop it and remove the fuel tank (Fuel System chapter).

  2. 2

    For the cylinder being tested, remove one spark plug and thread the compression gauge and adapter firmly into the plug hole; leave the second plug fitted (lead off). For the other cylinder, remove both plugs.

  3. 3

    With the throttle held fully open, crank the engine on the starter until the gauge stops rising — the highest reading is the compression.

    Usable range 284–500 kPa @200 rpm.

  4. 4

    Repeat for the other cylinder, then refit the spark plugs.

    Torque17 N·m
Note

Higher than the usable range usually means carbon build-up or a wrong head-gasket thickness; lower means worn valves/seats, worn rings or bores, a seized HLA, or a damaged decompression mechanism. The manual’s diagnosis table maps each symptom to its remedy.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)

The self-adjusting tappets that replace a valve-clearance check; they need bleeding whenever disturbed.

Each rocker arm houses an HLA that maintains zero valve lash from oil pressure. They are not serviced on a schedule, but if the rocker case is opened a noisy HLA must be air-bled in an oil bath before refitting. Handle them gently — a dropped or knocked HLA may not plunge smoothly and must be replaced.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)

HLA air bleeding

Done in a container of fresh engine oil.

  1. 1

    Fill a container with engine oil and submerge the HLA.

  2. 2

    Grind a thumbtack needle down to 2.1–2.3 mm long, smooth its edge, and use it to push the HLA check valve in while moving the plunger up and down in the oil.

    Caution

    Do not push the check valve in more than 2.1–2.3 mm — pushing too deep can damage the HLA.

  3. 3

    If the plunger keeps sinking into the body after bleeding, repeat; if it still sinks, replace the HLA.

  4. 4

    Soak the rocker arm in engine oil and insert the bled HLA, keeping it upright so oil does not leak out.
