General Information
How to use the manual, the “Before Servicing” safety and assembly rules every later chapter relies on, model identification, the master General-Specifications table, and the unit-conversion reference.
Chapters· General Information
Source: Service Manual — pp. 1-1 … 1-19src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
The general rules that apply across every chapter — read these once so the procedures elsewhere can stay terse.
Before any service, disconnect the battery to stop the engine turning over accidentally. Disconnect the ground (−) wire first, then the positive (+). On reassembly connect the positive (+) first, then the negative (−).src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
Replacement parts must be Kawasaki genuine or Kawasaki-recommended. Always fit new gaskets, O-rings, oil/grease seals, circlips and cotter pins whenever a joint is disassembled — reused sealing parts leak.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
Key “Before Servicing” rules
| Cleanliness Dirt entering sealed areas causes wear and lost performance. | Clean the vehicle before disassembly |
|---|---|
| Tightening sequence No order given → tighten alternately, diagonally, to avoid case warpage. | Follow the specified order |
| Tightening torque Often done twice — initial snug, then final torque. | Use a good torque wrench |
| Bearings & seals Press on the correct race; pressing the wrong race ruins the bearing. | Marks face out; replace if removed |
| Circlips Do not over-expand; replace any clip that was removed. | Sharp edge faces outward (load side) |
| Liquid gasket / locking agent Excess can clog oil passages. | Apply sparingly to clean, oil-free threads |
| Crankshaft rotation The free-play direction affects adjustments. | Clockwise viewed from the right side |

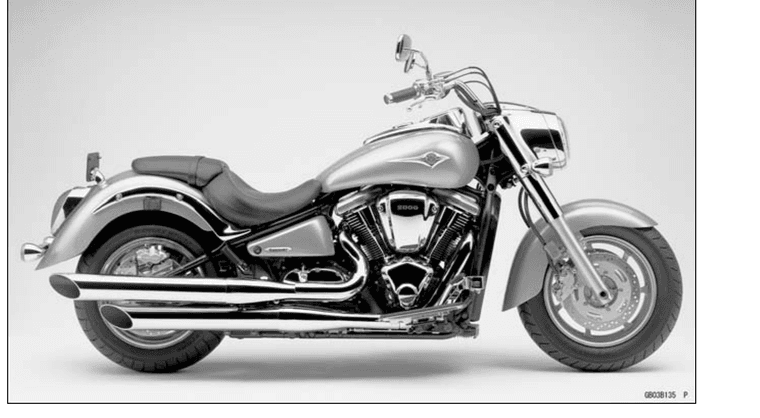

This manual covers the Kawasaki VN2000-A1 (US, Canada and Europe variants).
The machine is the VN2000-A1 — the first-year (2004) Vulcan 2000. US/Canada and European versions differ mainly in emissions equipment (the European and California models add an oxygen sensor and catalyst) and in the final-drive reduction ratio. Identify the bike by its frame and engine numbers before ordering parts; specifications below are subject to change without notice and may not apply to every country.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
- Specifications →The full compendium spec sheet.
- Owner's manual: Specifications →The rider-facing spec summary.
- Model history →Where the VN2000 sits in the line.
The factory master specification table — dimensions, performance, engine, valve timing, drive train, frame, tyres and electrical equipment. Metric values only.
Dimensions & performance
| Overall length | 2 535 mm |
|---|---|
| Overall width (AU) 985 mm | 1 025 mm |
| Overall height | 1 155 mm |
| Wheelbase | 1 735 mm |
| Road clearance | 135 mm |
| Seat height | 680 mm |
| Dry mass | 340 kg |
| Curb mass — front | 176 kg |
| Curb mass — rear | 195 kg |
| Fuel tank capacity | 21 L |
| Minimum turning radius | 3.2 m |
Engine
| Type | 4-stroke, OHV, V-twin |
|---|---|
| Cooling | Liquid-cooled |
| Bore × stroke | 103 × 123.2 mm |
| Displacement | 2 053 mL |
| Compression ratio | 9.5 : 1 |
| Maximum power | 76 kW (103 PS) @4 800 r/min |
| Maximum torque | 177 N·m @3 200 r/min |
| Fuel system | DFI (Digital Fuel Injection) |
| Starting | Electric starter |
| Ignition | Battery & coil (transistorized), digital advance |
| Ignition timing — front | 13° BTDC @900 → 51° BTDC @4 000 r/min |
| Ignition timing — rear | 15° BTDC @900 → 51° BTDC @4 000 r/min |
| Spark plugs | NGK IZFR6F-11 |
| Cylinder numbering / firing order | Front-to-rear 1-2 / 1-2 |
| Lubrication | Forced (semi-dry sump) |
| Engine oil | API SE/SF/SG (or SH/SJ + JASO MA), SAE 10W-40 |
| Oil capacity (dry, fully disassembled) | 5.5 L |
Valve timing
| Valve | Open | Close | Duration |
|---|---|---|---|
| Inlet | 39° BTDC | 69° ABDC | 288° |
| Exhaust | 69° BBDC | 39° ATDC | 288° |
Drive train
| Primary reduction | Chain, 1.500 (48/32) |
|---|---|
| Clutch | Wet multi-disc |
| Transmission | 5-speed, constant mesh, return shift |
| Gear ratios | 1st 2.550 · 2nd 1.629 · 3rd 1.218 · 4th 0.939 · 5th 0.729 |
| Final drive | Belt, 2.744 (50/40 × 72/32); (EU) 2.455 |
| Overall ratio @ top gear | 3.003; (EU) 2.687 |
Frame, suspension & tyres
| Frame type | Tubular, double cradle |
|---|---|
| Caster (rake) | 32° |
| Trail | 182 mm |
| Front tyre | 150/80-R16 M/C 71V, tubeless |
| Rear tyre | 200/60-R16 M/C 79V, tubeless |
| Front suspension | Telescopic fork, 150 mm travel |
| Rear suspension | Swingarm, mono-shock (non-link), 100 mm travel |
| Brakes | Front dual disc · rear single disc |
Electrical equipment
| Battery | 12 V 18 Ah |
|---|---|
| Headlight | Semi-sealed beam, 12 V 65 W / 55 W (quartz-halogen) |
| Tail / brake light | 12 V 5 / 21 W |
| Alternator | Three-phase AC, 38 A × 14 V @5 000 r/min |
Specifications are subject to change without notice and may not apply to every country (AU Australia, CA Canada, CAL California, US United States, EU Europe).src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
Three engineering features the service procedures reference: the oxygen sensor (EU/California), the electric decompressor, and the dual balancer-shaft system.
Oxygen sensor — European and California models add a zirconia (ZrO₂) oxygen sensor above the exhaust manifold, plus a secondary air-injection system and a honeycomb catalyst inside the silencer. In closed-loop mode the ECU reads the sensor (switching around 0.45 V at λ = 1) and trims injector delivery rich or lean to keep the mixture in the catalyst’s “window”. A built-in heater brings the sensor up to operating temperature quickly. Sensor faults set service codes 33, 67 or 94.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
Electric solenoid decompressor — an Automatic Compression Release on the right of the engine eases starting. With the ignition on and the starter button pressed, a solenoid pulls a link that pushes rods in each camshaft to crack the exhaust valves open near TDC, bleeding off compression. Releasing the starter de-energises the solenoid and a spring returns the push rods.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
Dual balancer-shaft system — two balancer shafts (one ahead of the front cylinder, one behind the rear) harmonise primary balance and cut vibration. Each is chain-driven from the crankshaft sprocket, with a hydraulically operated tensioner (fed from the lubrication pump) between the crank and rear balancer shaft and two chain guides.src: Kawasaki VN2000-A1 Service Manual — Periodic Maintenance (Torque & Locking Agent / Specifications tables, pp. 2-7…2-13)
The whole site is metric, but the factory conversion table is genuine manual content and handy when cross-referencing imperial parts data.
Unit conversions
| Quantity | Metric → imperial |
|---|---|
| Mass | kg × 2.205 = lb · g × 0.03527 = oz |
| Volume | L × 0.2642 = US gal · L × 1.057 = US qt · mL × 0.06102 = cu in |
| Force | N × 0.1020 = kgf · N × 0.2248 = lb |
| Length | km × 0.6214 = mile · m × 3.281 = ft · mm × 0.03937 = in |
| Torque | N·m × 0.1020 = kgf·m · N·m × 0.7376 = ft·lb |
| Pressure | kPa × 0.01020 = kgf/cm² · kPa × 0.1450 = psi |
| Speed | km/h × 0.6214 = mph |
| Power | kW × 1.360 = PS · kW × 1.341 = HP |
